Understanding Statistical Process Control: A Practical Guide to Control Charts

Key Insights

• A control chart plots process data against statistically calculated control limits to distinguish normal variation from problems requiring immediate attention.

• Common cause variation accounts for an estimated 94% of quality problems and requires fundamental process changes to reduce, while special cause variation can be identified and eliminated through targeted investigation.

• Selecting the right chart type matters: X-bar and R charts for subgroup averages, I-MR charts for individual measurements, and P, NP, C, or U charts for attribute data like defect counts.

• Control limits should always be calculated from actual process data-not engineering specifications-to accurately reflect process behavior.

• Modern SPC software enables real-time monitoring with automated alerts, direct CMM integration, and supply chain visibility that transforms control charts from periodic analysis into continuous process oversight.

For aerospace, automotive, medical device and precision industries, a control chart is one of the most powerful tools in statistical process control. Developed by Walter Shewhart at Bell Labs in the 1920s, control charts provide a visual representation of process behavior over time so quality teams can tell the difference between normal process variation and something that needs attention. The main parts of a control chart are the center line (the average), control limits and the plotted data points that show process performance.

Understanding control charts is essential for any organization that wants to prevent defects and continuous improvement. When used correctly control charts turn reactive quality management into proactive process monitoring, so manufacturers can catch process drift before it results in scrap, rework or quality escapes that damage customer relationships.

This guide will show you how control charts work, the types of control charts for different applications and how modern statistical process control software allows you to monitor process stability in real-time across complex manufacturing operations.

What is a Control Chart?

A control chart is a graphical tool to see if a manufacturing process is in statistical control. The chart plots individual data points over time against a center line that is the average of the process and control limits that are the acceptable boundaries for variation. The y axis is the vertical axis of the chart where the data points are plotted, that's the measured quality characteristic being monitored. If all the points are within the upper and lower control limits and no patterns emerge, the process is stable and predictable.

The control chart shows more than if the measurements meet specifications. By setting the upper and lower control limits based on the actual process data not engineering tolerances, control charts show the natural variation in any process. This matters because a process can produce parts within specification but still be unstable and signal future quality problems.

Most control charts set limits at plus or minus three standard deviations from the process mean. This is based on the principles of normal distribution, so approximately 99.7% of the data points from a stable process should be within the control limits. When one point goes out of control or a pattern of variation emerges the chart tells you something unusual has happened to the process.

Common Cause vs Special Cause Variation

Every manufacturing process has some variation. Understanding the difference between common cause variation and special cause variation is key to using control charts effectively and making informed decisions about process improvement.

Common cause variation is the controlled variation that is always present in a stable process. Also called natural variation, it's the result of the process design, equipment, raw materials and environmental conditions. Common cause variation is consistent and predictable and shows up as random fluctuation around the center line.

Experts estimate 94% of the problems a company faces are from common causes. When only common cause variation is present, reducing variation requires fundamental changes to the process itself, such as upgrading equipment, improving raw material quality or redesigning the manufacturing method. Trying to adjust a process based on common cause variation often introduces more instability than less.

Special Cause Variation

Special cause variation, also called assignable cause variation or uncontrolled variation, is from unusual circumstances not inherent to the process. Examples are a miscalibrated machine, a change in raw material from a new supplier, an untrained operator or a power fluctuation affecting equipment performance.

Unlike common causes, special causes are sporadic and unpredictable. When a control chart detects special cause variation quality teams should investigate immediately to find the root cause. Once found special causes can usually be eliminated without redesigning the whole process. Detecting and addressing special causes quickly prevents defects from reaching customers and keeps production running smoothly.

Types of Control Charts

Different types of control charts serve different purposes depending on the type of data being monitored and the process characteristics. Choosing the right chart ensures accurate detection of out of control conditions while minimizing false alarms that waste investigation resources. Each control chart uses specific rule sets to identify signals or special causes of variation, so it's important to clearly define and consistently apply these criteria. For simpler process data visualization run charts can be used as a first step before implementing control charts.

Variable Data Charts

Variable data is continuous measurements such as length, temperature, weight or diameter. These measurements can take any value within a range and provide rich information about process behavior.

X-Bar and R Charts: The X-bar chart (sometimes called the x chart) monitors the process average by plotting the mean of subgroups over time. When paired with an R chart (range chart), which tracks the variation within each subgroup, these charts provide a full view of the process center and its consistency. The average range (Rbar) is used to calculate control limits and assess process variability, so it's a key factor in determining process stability. X-bar and R charts work well when subgroup sizes are 2 to 10 samples.

X-Bar and S Charts: For larger subgroup sizes S charts measure variability using standard deviation rather than range, providing a more precise estimate of within subgroup variation. X-bar and S charts are common in automated data collection environments where larger samples are possible.

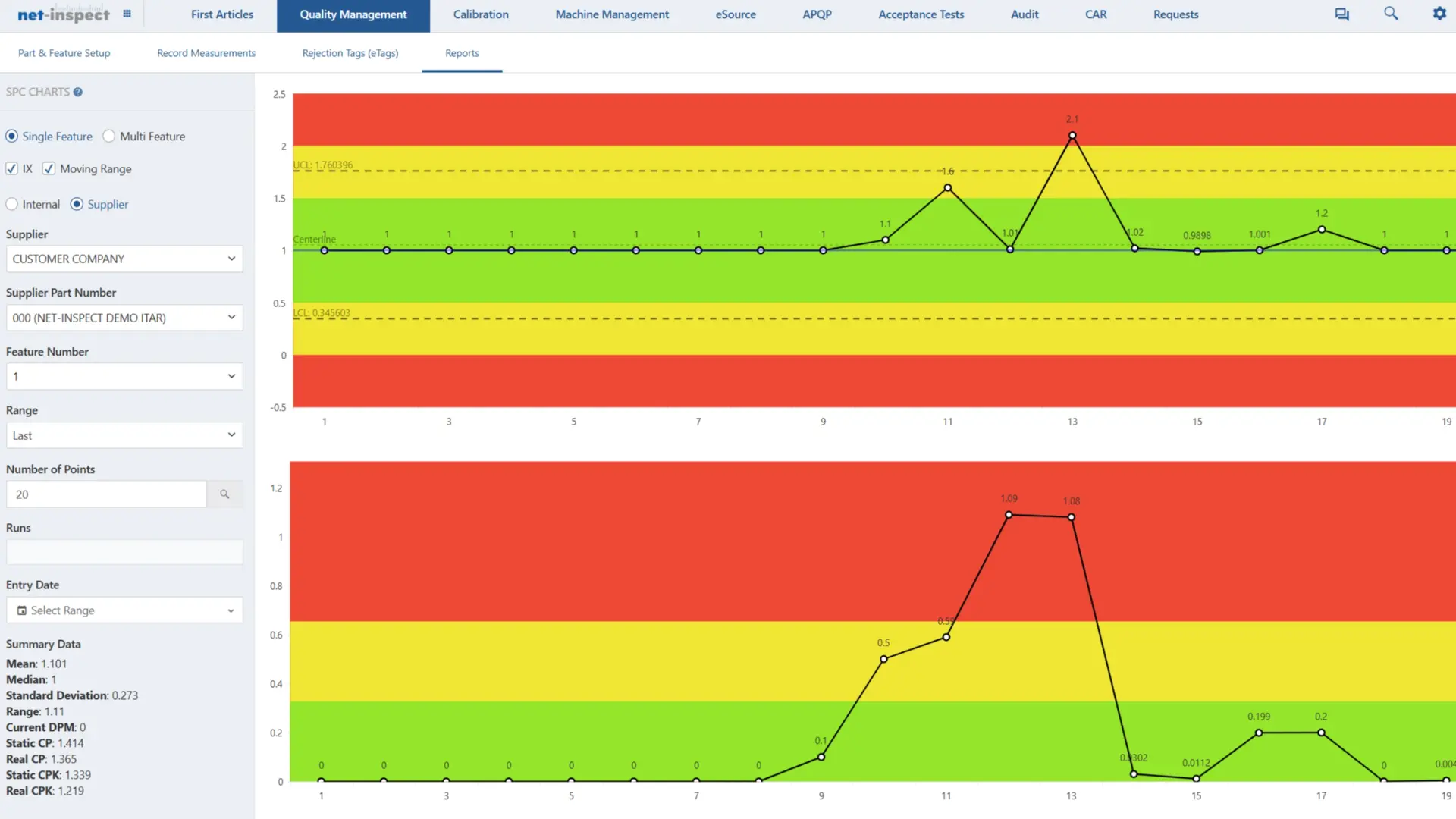

I-MR Charts (Individuals and Moving Range): When only one measurement is available at each sampling point the individuals chart monitors a single measurement at a time while the moving range chart tracks the difference between consecutive measurements. I-MR charts are common in process industries, low-volume production and situations where testing is destructive or expensive.

Attribute Data Charts

Attribute data involves counting items that fall into categories, such as pass/fail, defective/conforming or number of defects. Different chart types handle different counting scenarios.

P Charts: P charts monitor the proportion defective in samples of varying sizes. They are used when classifying items as defective or conforming and sample sizes may differ between inspection periods.

NP Charts: When sample sizes are constant NP charts track the actual number of defective items rather than proportions. This makes them simpler to interpret for operators on the production floor.

C Charts: C charts count the number of defects per unit when the sample size or area of opportunity is constant. They are useful when a single item can have multiple defects, such as scratches on a painted surface.

U Charts: U charts measure defects per unit when sample sizes vary. They normalize the count by dividing total defects by sample size, enabling comparison across different production periods.

Reading and Interpreting Control Charts

Knowing how to interpret a control chart is as important as knowing which chart to use. Control limits create boundaries that separate expected variation from signals that require investigation. When data points stay within the control limits and show random scatter around the center line the process is in statistical control.

A single point beyond either control limit is the most obvious signal of a special cause. However, patterns within the control limits can also indicate process issues. Eight consecutive points on one side of the average indicate a shift in the process center that needs to be investigated. Similarly six or more points trending in the same direction indicate systematic drift. Patterns such as cycles, hugging the center line or hugging the control limits can indicate process behavior problems that wouldn't be caught by looking at control limits alone.

If a process is in control most points will cluster near the average with decreasing frequency as they approach the control limits. An in control process has only common cause variation present. When the underlying distribution is different from this pattern the process may have multiple sources of variation or the control limits may have been calculated incorrectly. Rational subgrouping is key to ensuring control limits only show common cause variation. By grouping samples taken under the same conditions, such as consecutive parts from the same machine or measurements from the same shift, within subgroup variation captures short term variation and between subgroup variation reveals process shifts that matter. Rational subgrouping also helps to distinguish between variation within subgroups and between subgroups so we can better identify and control variation.

Implementing Control Charts in Modern Manufacturing

While the principles of control charts remain the same since Shewhart's work, the way manufacturers implement statistical process control has changed dramatically. Modern SPC software eliminates the manual calculations and paper based tracking that made control charts time consuming to maintain, so we can monitor in real-time across complex operations.

Real-Time Data Collection

In advanced manufacturing environments, measurement results from CMMs, calipers, micrometers, and other inspection equipment can flow directly into SPC software systems for immediate analysis. Consistent data collection is the foundation for meaningful analysis and process improvement. When data is collected automatically, process characteristic measurements appear on control charts within seconds rather than hours or days. This real-time visibility allows operators and inspectors to see process drift and take corrective action before producing more defective parts.

Automated Alerts and Notifications

Cloud based quality management systems can automatically trigger alerts when measurements go out of control or when patterns of concern emerge. Real-time email notifications ensure the right people are notified immediately, regardless of where they are located. This is especially useful for manufacturers with multiple facilities or monitoring supplier quality across global supply chains.

Process Capability Analysis

Control charts tell you if a process is stable but process capability analysis tells you if a stable process can meet specifications. Metrics like Cpk quantify how well the process output meets customer requirements. Integrating control charts with capability analysis gives you a complete picture of process performance, highlighting stability issues and capability gaps that need attention.

Supply Chain Visibility

For OEMs and tier suppliers managing complex supply chains the ability to see supplier SPC data provides unprecedented visibility into sub-tier quality performance. Rather than waiting for defective parts to arrive at receiving inspection manufacturers can monitor supplier process stability and capability in real-time and address issues before they impact production schedules.

Best Practices for Control Chart Success

Control charts only deliver value when implemented thoughtfully and maintained consistently. These best practices will help you get the most out of your SPC investment.

1. Choose the right chart for your data. Applying an X-bar chart to attribute data or a P-chart to continuous measurements will produce misleading results. Take the time to understand the types of control charts available and match your selection to the data you're collecting.

2. Establish control limits from process data, not specifications. Control limits should reflect the process behavior, not the engineering tolerances. Using specification limits as control limits defeats the purpose of statistical process control and can hide process instability.

3. Ensure measurement system adequacy. Control charts can only detect process variation when measurement variation is small enough. Conduct measurement system analysis to verify your gages and measurement techniques contribute minimal variation to the overall data.

4. Train employees on interpretation. Training employees on how to use and interpret control charts is key to a culture of quality improvement. Operators who understand what the charts mean can respond to out of control signals and contribute to special cause identification.

5. Respond to signals systematically. Develop procedures for investigating out of control points. Document the findings and corrective actions to build organizational knowledge about common special causes and responses.

6. Review and recalculate periodically. After implementing process improvements or eliminating special causes recalculate control limits based on the improved process. Control charts should evolve as the process improves.

The Business Case for Statistical Process Control

Control charts are more than a quality control technique. They're a strategic tool to reduce costs, improve customer satisfaction and maintain competitive advantage. Manufacturers who master statistical methods can predict future performance based on current process behavior and make data driven decisions rather than intuitive.

A controlled process produces consistent output which translates to reduced scrap, fewer customer complaints and improved delivery performance. By identifying process issues early control charts support defect prevention rather than defect detection, shifting quality costs from inspection and rework to prevention and improvement.

For manufacturers in regulated industries control charts provide documented evidence of process stability for audits and customer reviews. Whether you're working towards AS9100 certification, IATF 16949 compliance or FDA validation requirements statistical process control demonstrates your commitment to quality.

Getting Started with Control Charts

Control charts have been one of the seven basic tools of quality control since their inception at Bell Labs to their current implementation in advanced SPC software systems they continue to help manufacturers maintain process stability and drive continuous improvement. If you're tired of paper based quality processes or disconnected spreadsheets modern SPC solutions provide the infrastructure to collect measurement data from multiple sources, generate control charts automatically and alert quality teams in real-time. With the right tools using control charts becomes part of daily operations rather than a periodic exercise.
